Filling Manifolds for cylinders

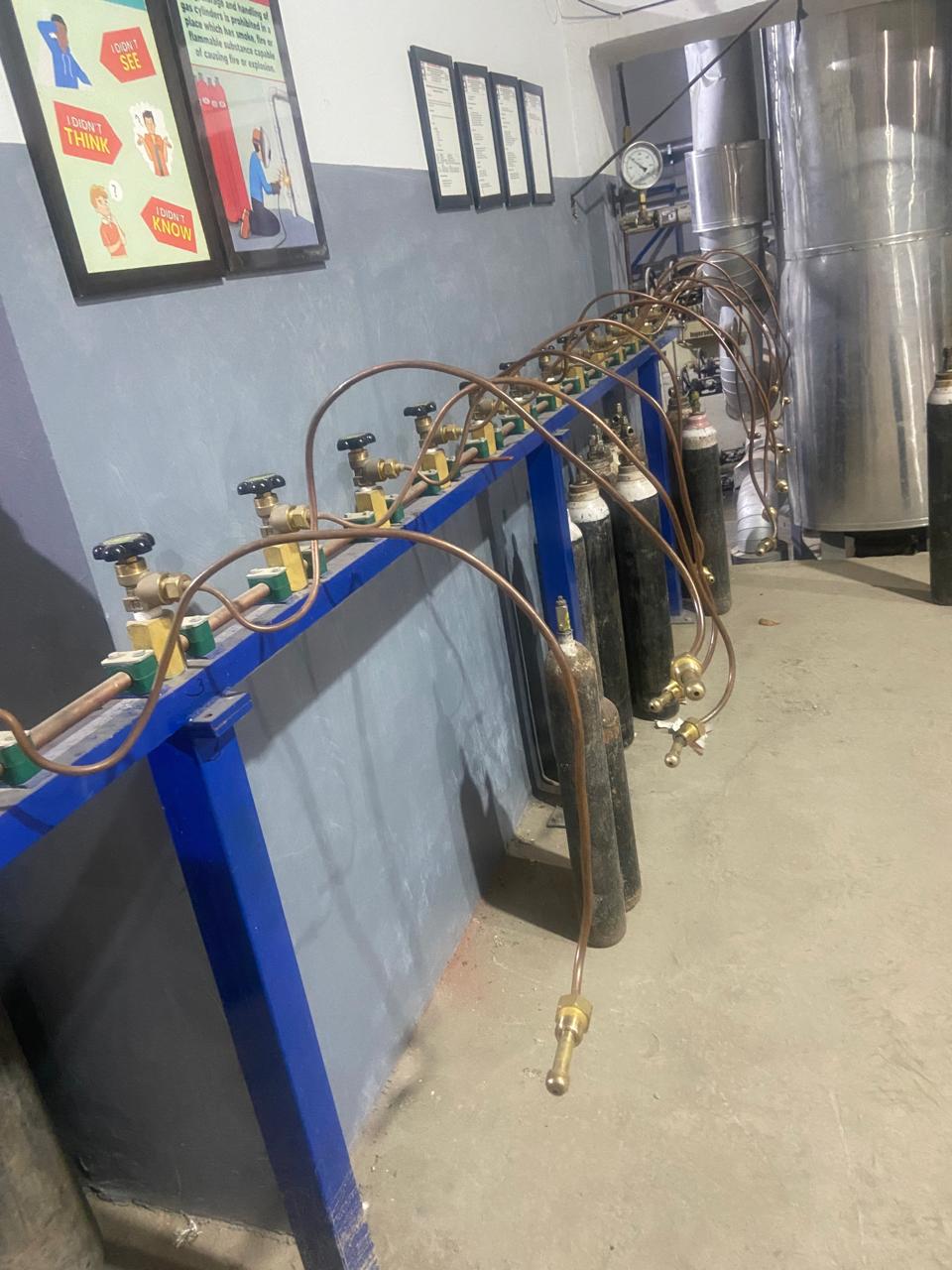

WhatsApp Image 2025-11-06 at 17.54.50_bd2a70ae

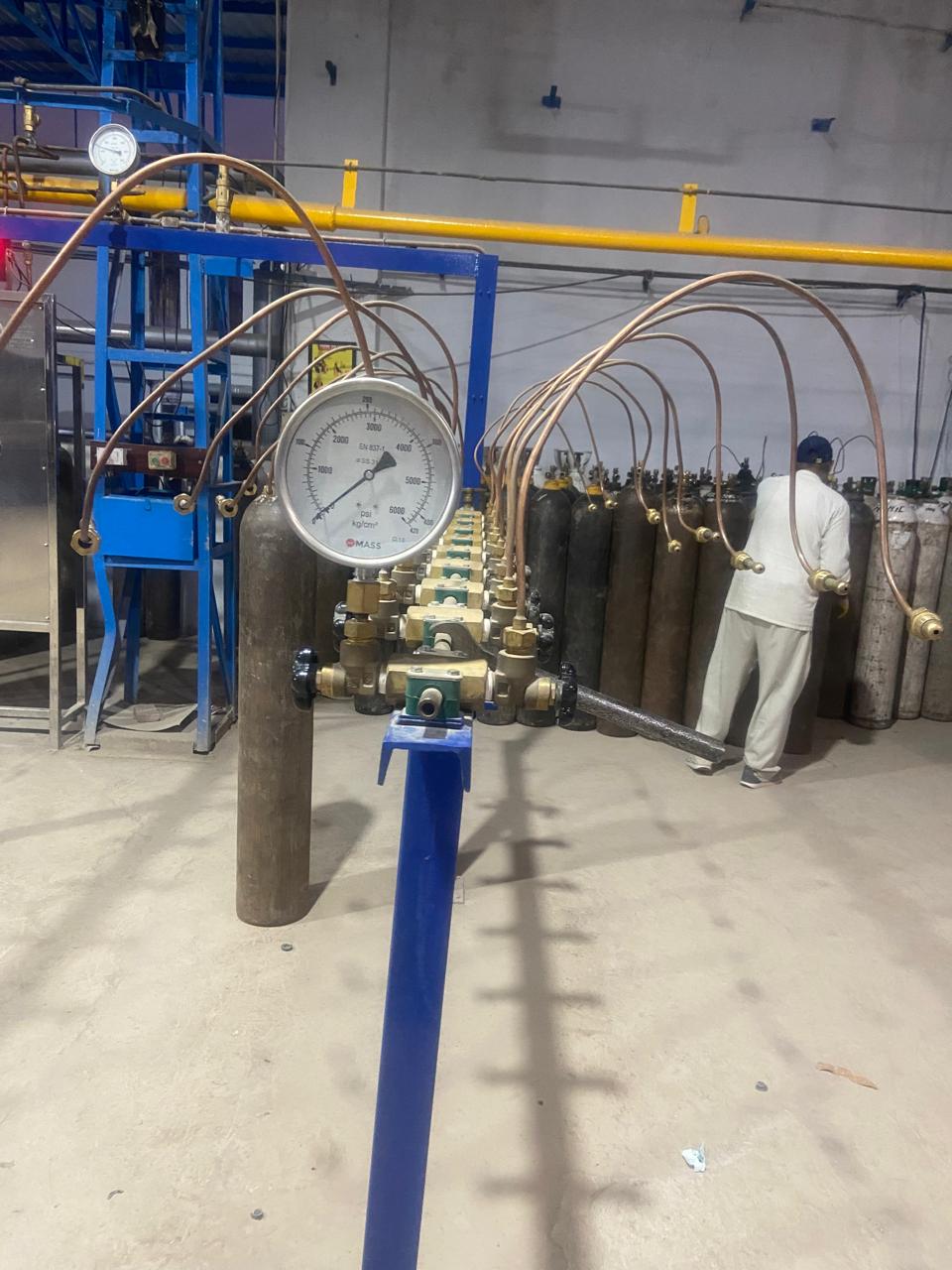

WhatsApp Image 2025-11-06 at 17.54.48_70393a02

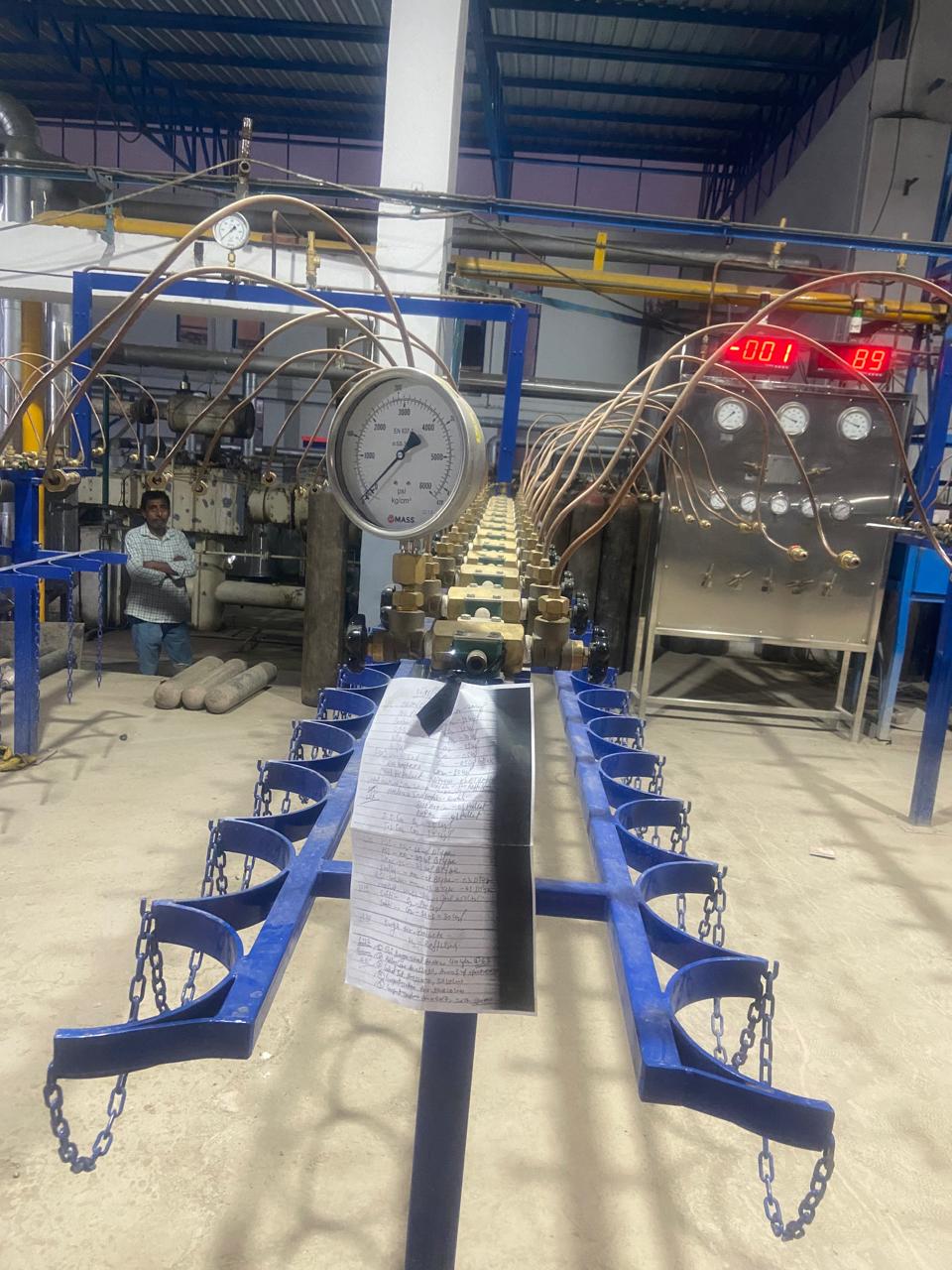

WhatsApp Image 2025-11-06 at 17.54.49_6e6a14cc

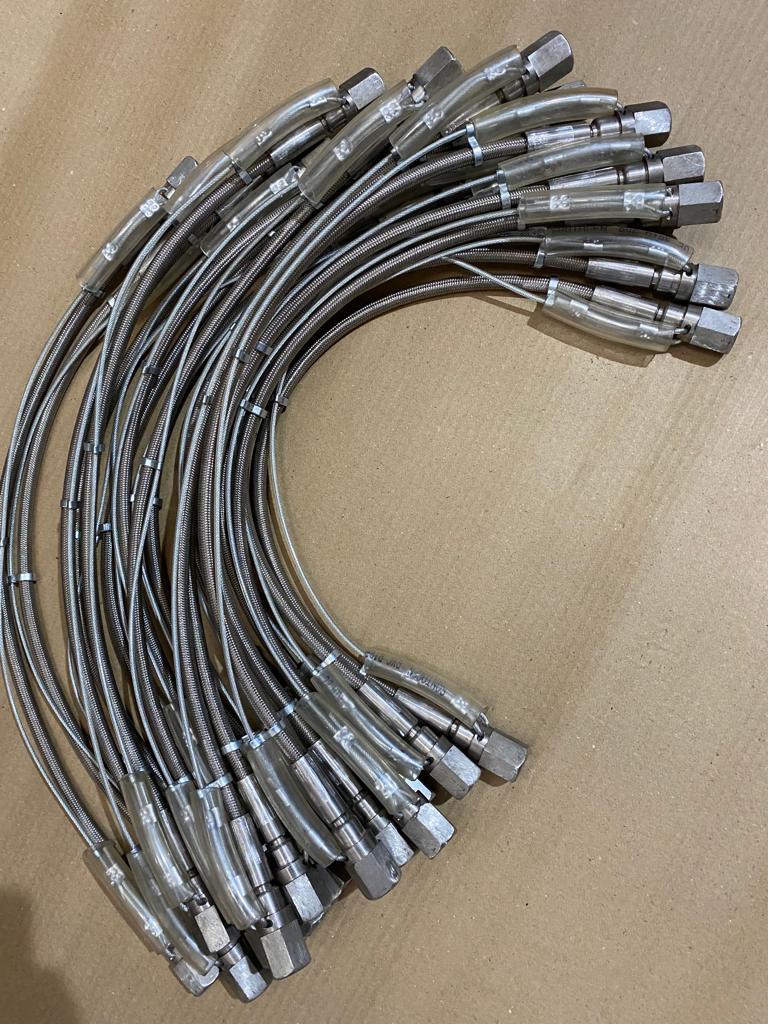

flexy. filling hoses

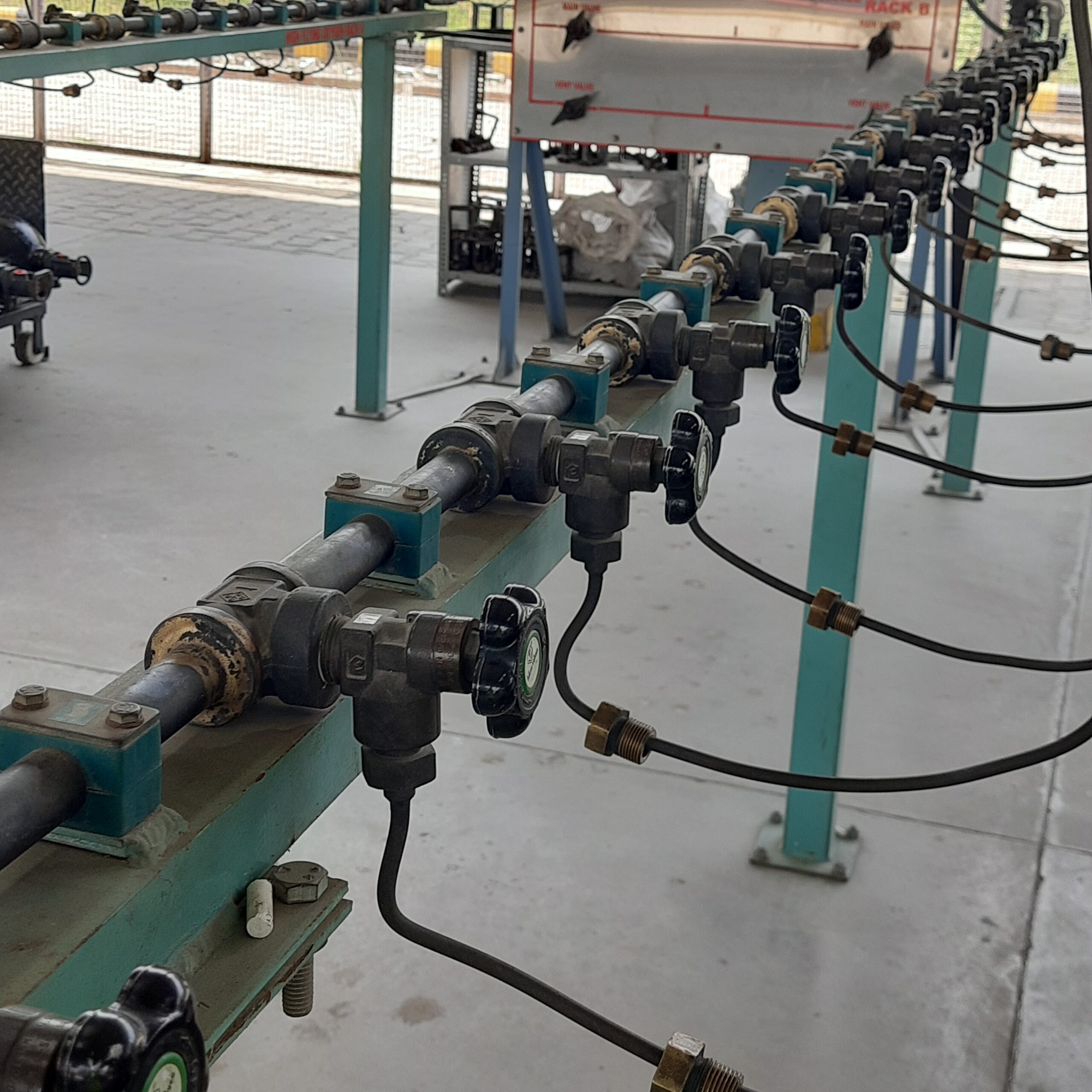

Manifold INOX

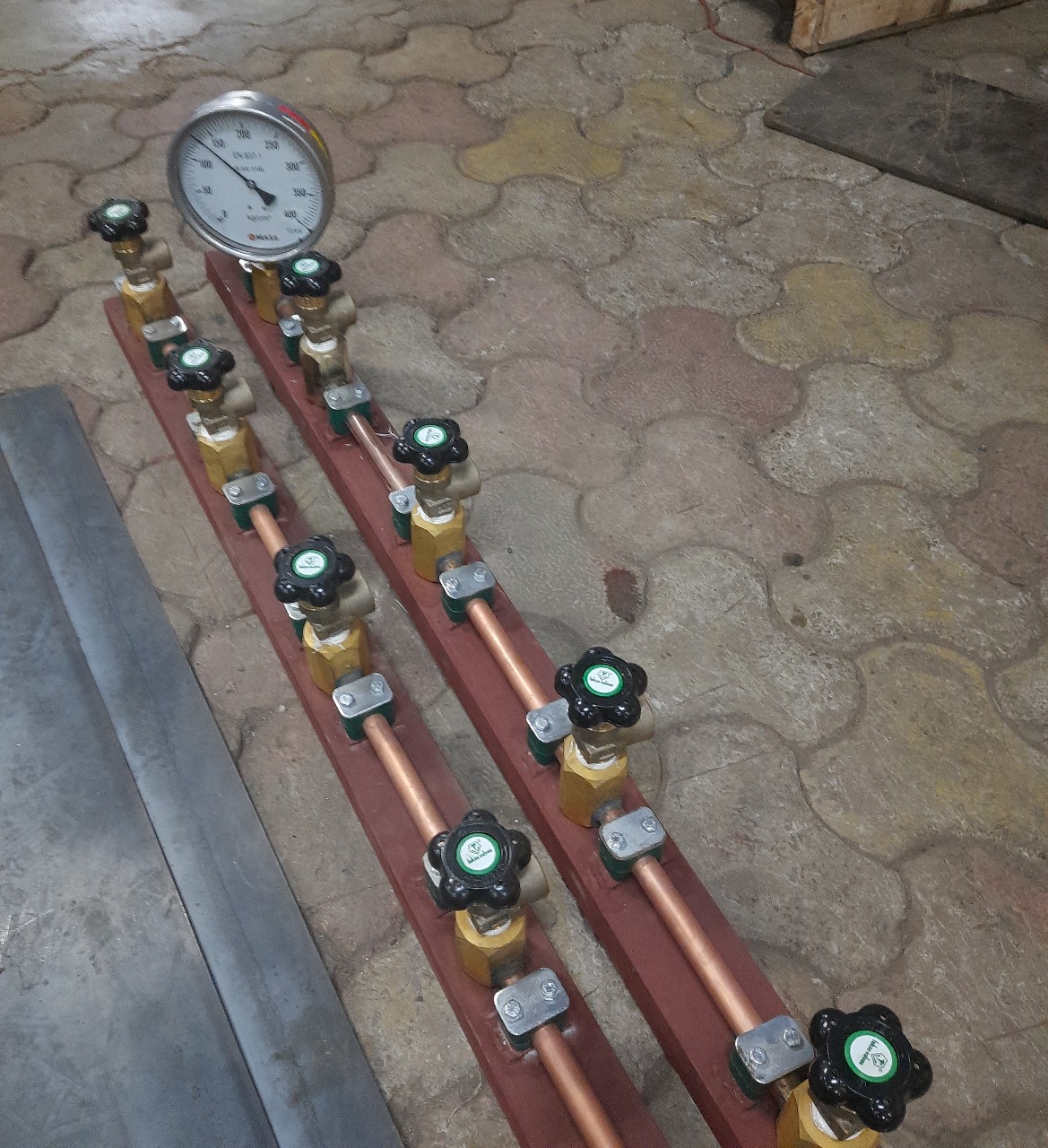

manifolds_under_testing

Precision-Fabricated · Oxygen-Cleaned · Pressure-Tested for Safety

Our manifolds are designed for 150–300 bar high-pressure gas systems as per requirement and built to integrate seamlessly into cylinder packs, quads, and modular skids. Each unit delivers long-lasting performance, easy serviceability, and full compliance for oxygen and industrial gas engineered with attention to every detail.

We can supply these assemblies in any configuration or cylinder count, tailored to your operational requirements—be it high-capacity stillages, compact mobile packs, or custom skid-mounted solutions.

All pack and quad frames are coated with primer and can be finished with enamel paint, powder coating, or hot-dip galvanization based on your site conditions and corrosion resistance needs.

Key Design Features

  • Compact Layouts
    Engineered to fit within cylinder packs, stillages, and structural frames
  • Integrated Isolation Valves
    Allow line-specific shutoff without disturbing the rest of the system
  • Front-Facing Fittings
    Tool-friendly layout for fast access and field service
  • Replaceable Tubing
    Each tube is individually replaceable—no need to dismantle the full manifold
  • Adjustable Manifold Height
    Manifolds can be height-adjusted within defined limits to match different cylinder sizes—ensuring flexible alignment in variable setups
  • Pressure Gauge Included
    One pressure gauge is provided on each manpack/quad for easy real-time pressure monitoring during operation
  • Labeling On Request Labels for packs and quads—such as hazard signs, contents identification, or pressure zones—can be provided upon request to match your site’s compliance standards

Fabrication & Maintenance Highlights

  • CNC-Machined Components
    All fittings are precision-crafted on CNC machines for consistent, high-tolerance performance
  • Oxygen-Compatible Cleaning
    Every manifold is cleaned and prepared for oxygen service following international cleanliness standards

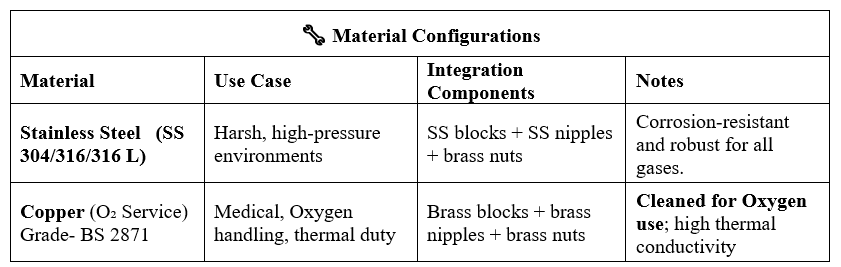

  • Material-Specific Joining Techniques
    • TIG welding for stainless steel joints
    • Silver brazing for copper/brass assemblies
  • Dual Pressure Testing
    Each manifold undergoes:
    • Hydrostatic testing at 1.5× working pressure
    • Pneumatic leak testing to confirm airtight performance

Ideal Applications

  • Medical and calibration gas supply
  • Oxygen distribution in hospitals or mobile stations
  • Industrial quads and gas control panels
  • Cylinder bank manifolds for refilling or decanting

Ideal Applications

  • Medical and calibration gas supply
  • Oxygen distribution in hospitals or mobile stations
  • Industrial quads and gas control panels
  • Cylinder bank manifolds for refilling or decanting
